563YS30 Single Ended Beam Load Cell
In stock
SKU
563YS30

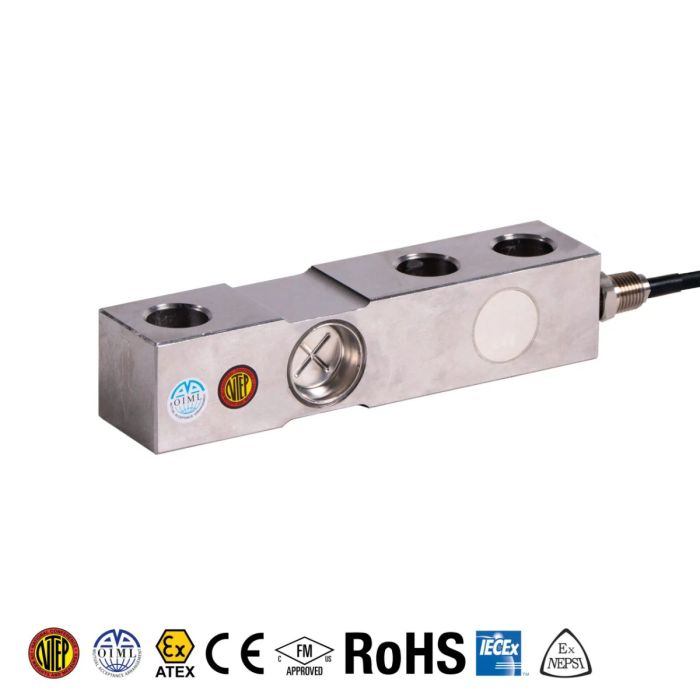

The 563YS30 is a medium to high-capacity single-ended beam load cell with stainless steel welded sealed IP68-class water and corrosion resistance.
Summary Feature
- Material: Stainless steel
- Full Scale Output: 3mV/V ± 0.25%
- IP Rating: IP68
- OIML: 1KLb-5Klb: OIML MAA C4, Y=15000 10Klb-20Klb: OIML MAA C6, Y=8500;
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 7Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CG-23-SSW-03 |
| HBM | B35** |
| HBM | H35*** |
| Mettler-Toledo | 0793 |
| Rice Lake | RL35023S** |
| Rice Lake | RL35083 |
| Rice Lake | RL39123 |
| Vishay Celtron | SQB-HSS |
| Vishay Revere Transducers | 9123 |
| Vishay Sensortronics | 65023S** |
| Vishay Sensortronics | 65023SS**** |
| Vishay Sensortronics | 65083 |
| Vishay Tedea-Huntleigh | 3510-lbs |
