563YSMT-4 Single Ended Beam Load Cell
In stock
SKU

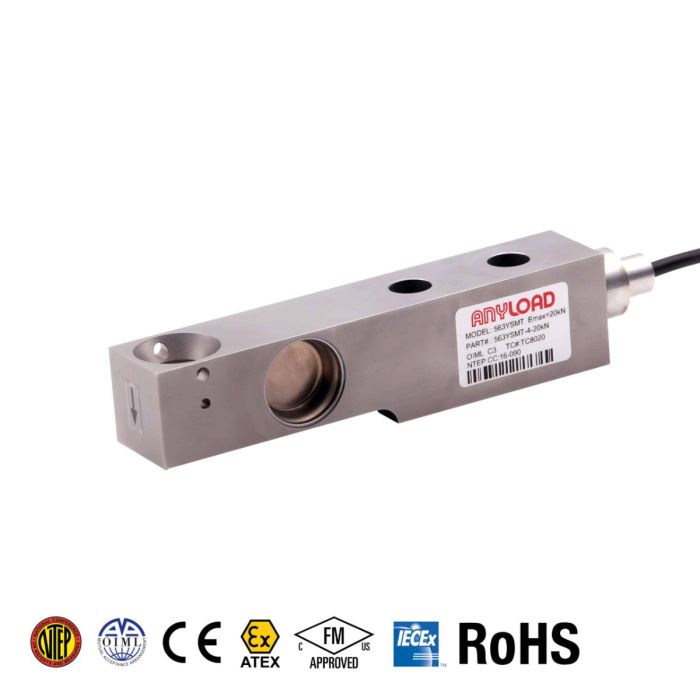

563YSMT-4 Single Ended Beam Load Cell
This cost-effective single-ended beam load cell’s compact, low-profile design makes it suitable for lower and medium-capacity applications. Its IP68-class water-resistant stainless steel welded sealed construction ensures excellent performance under rugged conditions.
Summary Feature
- Material: Stainless steel
- Full-Scale Output: 2.0 mV/V± 0.1%
- IP Rating: IP68
- 5kN-20kN: OIML MAA C5, Y=26 000;
- 50kN-100kN: OIML MAA C6, Y=8 500
- CE, RoHS and Ex(NEPSI) certified
Downloads
Downloads
Downloads
Specification
| Rated Capacity | 5kN, 10kN, 20kN, 50kN, 100kN |
| Full Scale Output | 2.0mV/V± 0.1% |
| Zero Balance | ± 0.01mV/V |
| Non-linearity | <± 0.017% |
| Repeatability | <± 0.017% |
| Hysteresis Error | <± 0.017% |
| Creep in 30 minutes | <± 0.017% |
| Input Resistance | 1100Ω ± 50 |
| Output Resistance | 1000Ω ± 5 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 200% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Weld Seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Flintec | SB4 |
