Single Ended Shear Beams

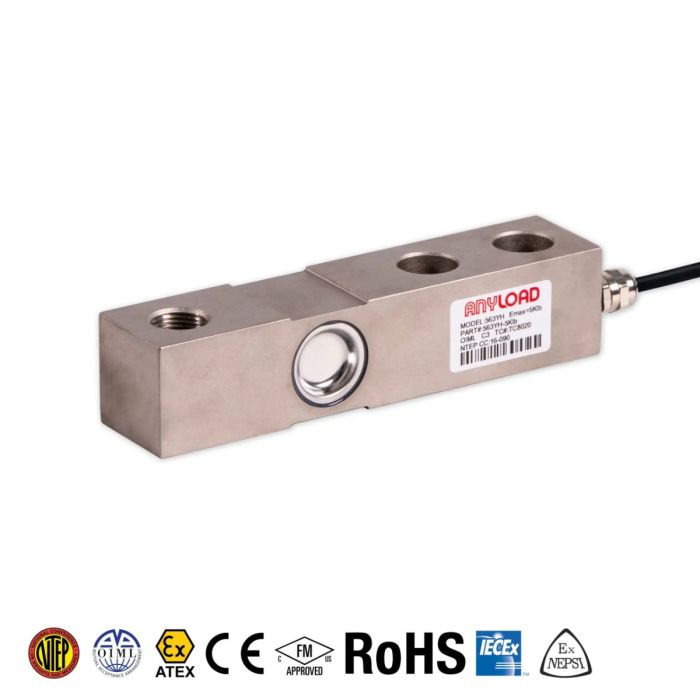

563YH Single Ended Beam Load Cell
In stock
SKU
563YH
The 563YH is an industry-standard and time-tested single-ended beam that is interchangeable with similar load cells on the market. The compact and low-profile design is suited for a variety of medium-capacity applications and is a cost-effective product is also frequently used in OEM applications.
Summary Feature
- Material: Alloy steel
- Full Scale Output: 3mV/V± 0.25%
- IP Rating: IP67
- OIML C3 certified from 3t-10t
- CE, RoHS and Ex(NEPSI) certified
Specification
| Rated Capacities | 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t |
| Full Scale Output | 3mV/V± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ± 20Ω for kg or 350Ω ± 7Ω for lb |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Interchangeable
| Manufacturer | Model |
| CAS | BSA* |
| Rice Lake | RL30000* |
| Rice Lake | RL35023* |
| Coti Global | CG-23* |
| Vishay Celtron | SQB* |
| Vishay Revere Transducers | 5123* |
| Vishay Sensortronics | 65023* |
| Vishay Tedea-Huntleigh | 3411* |
