108AA Single Point Load Cell
In stock
SKU
108AA

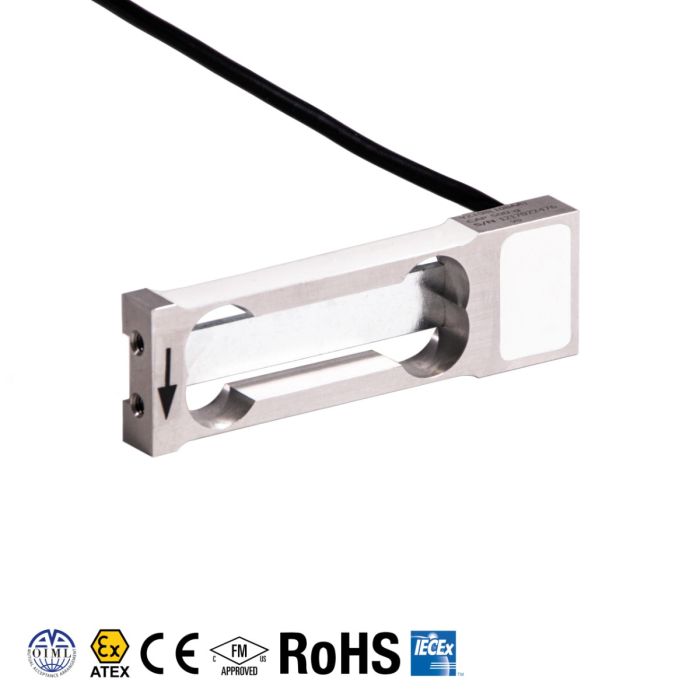

The ANYLOAD 108AA single-point load cell delivers reliable weight measurement for light-duty applications. Its aluminum construction offers an ingress protection rating of IP66. This product is available in capacities from 500g to 5kg.
Summary Feature
- Material: Aluminum, Clear Anodized
- Rated Capacities: 100g, 200g, 300g, 500g, 1kg, 2kg, 3kg, 5kg
- IP Rating: IP66
- OIML C3 certified from 1kg-5kg
- CE and RoHs certified
Specification
| Rated Capacities | 100g, 200g, 300g, 500g |
| Reference Max. Platform Size | 200mm x 200mm |
| Full Scale Output | 1mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.050% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0017% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
