108PA Single Point Load Cell
In stock
SKU
108PA

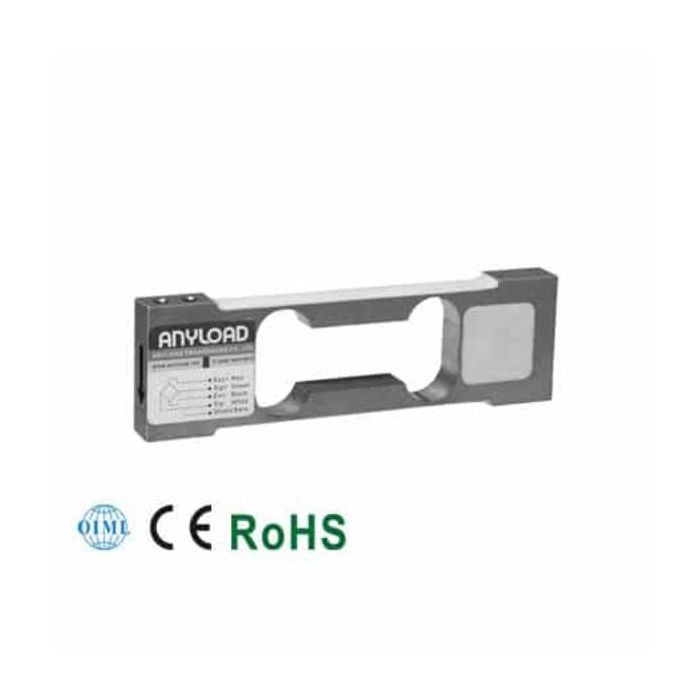

The 108PA is a compact high-accuracy OIML-certified single-point load cell. This model is ideal for high precision applications such as jewelry scales, pharmaceutical scales, cannabis scales, and other sensitive weighing needs.
Summary Feature
- Material: Aluminum, Clear Anodized
- Rated Capacities: 200g, 300g, 600g, 1kg, 2kg, 3kg, 6kg
- Full Scale Output: 1mV/V ± 20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 certified from 1kg-500kg
- CE and RoHS certified
Specification
| Rated Capacities | 200g, 300g, 600g |
| Reference Max. Platform Size | 200mm x 200mm |
| Full Scale Output | 1mV/V ± 20% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.050% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
| Reference Mounting | Socket-head cap screw: M3-6
Tightening torque: 2Nm |
Interchangeable
| Manufacturer | Model |
| HBM | SPL |
| Vishay Tedea-Huntleigh | 1004 |
