Single Point Load Cell
651AA Single Point Load Cell
In stock
SKU
651AA

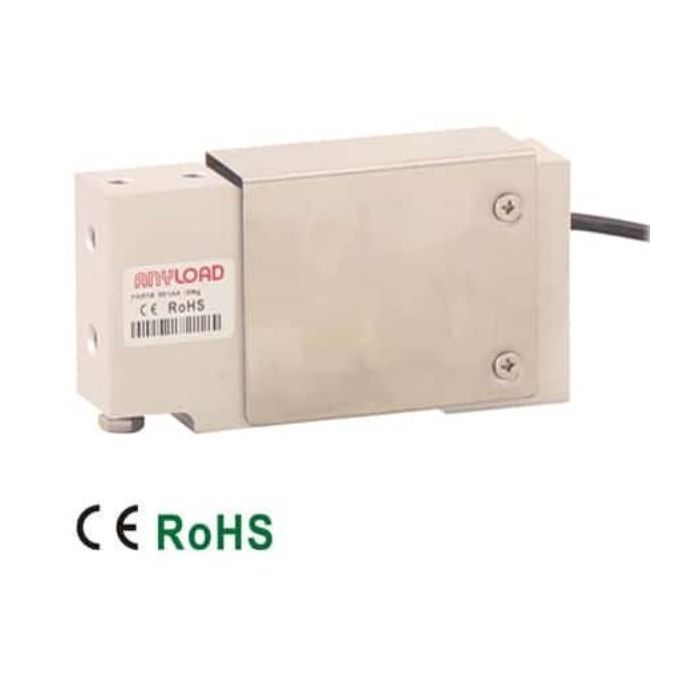

The ANYLOAD 651AA single-point load cell is suitable for a wide range of weighing applications, especially those involving off-center loads. Available in capacities from 10kg to 100kg, its aluminum construction offers an ingress protection rating of IP66. This model complies with multiple industry safety standards.
Summary Feature
- Material: Aluminum, Clear Anodized
- Rated Capacities: 10kg, 15kg, 30kg, 50kg, 100kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Specification
| Rated Capacities | 10kg, 15kg, 30kg, 50kg, 100kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CG-1010 |
| HBM | SP10* |
| Rice Lake | RL1010* |
| Vishay Tedea-Huntleigh | 1010* |
| Vishay Tedea-Huntleigh | 1015 |
