Single Point Load Cell

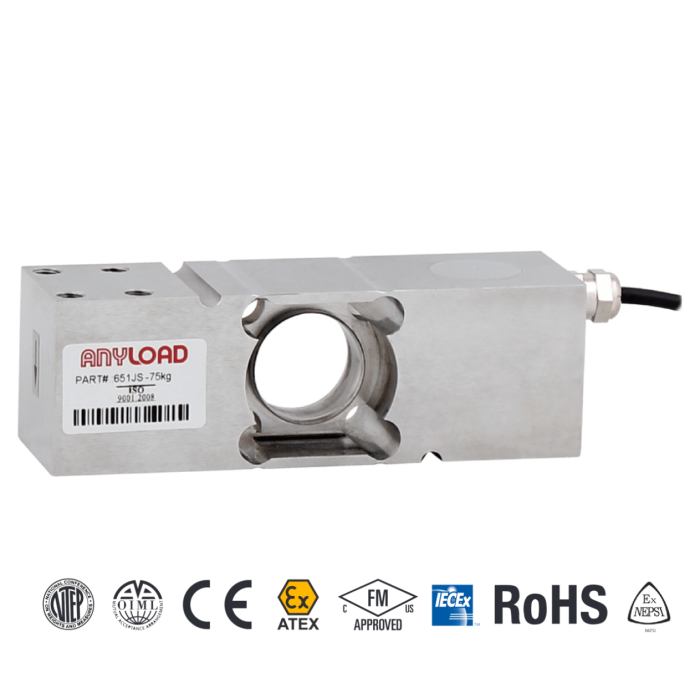

651JS Single Point Load Cell
In stock
SKU
651JS
OIML certified C9 from 10kg-100kg, this single point load cell is the highest accuracy legal-for-trade load cell available in the world. With IP68/69K stainless steel construction, 14°F to 122°F temperature compensation, and 150% safe overload, the 651JS is the ultimate weighing solution suited to an immense variety of applications.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 50kg, 75kg, 200kg, 400kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
Specification
| Rated Capacities | 50kg, 75kg, 200kg, 400kg |
| Reference Max. Platform Size | 600mm x 600mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.02% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 1000Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Model | ANYLOAD Model |
| 651JS-50kg | 108JA-50kg* |
| 651JS-75kg | 108JA-75kg* |
| 651JS-75kg | 108JA-LE75kg* |
| 651JS-200kg | 108JA-SE200kg* |
| 651JS-400kg | 108JA-SE400kg* |
