Single Point Load Cell

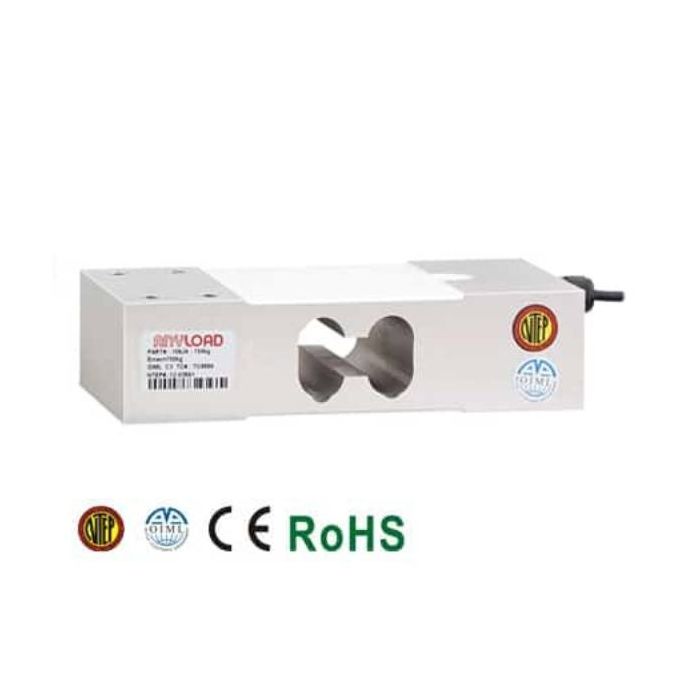

108JA-A2 Single Point Load Cell
In stock
SKU
108JA-A2
The 108JA A2 is an NTEP/OIML certified, IP66 waterproof single-point load cell offering superior accuracy for compression weighing.
Summary Feature
- Material: Aluminum
- Rated Capacities: 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, SE400kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Specification
| Rated Capacities | 20kg, 50kg, LE60kg, LE75kg, LE100kg, SE150kg, SE200kg, SE300kg, SE400kg |
| Reference Max. Platform Size ≤ 100kg | 460mm x 600mm |
| Reference Max. Platform Size (150-400)kg | 600mm x 600mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.0075% |
| Repeatability | < ± 0.0075% |
| Hysteresis Error | < ± 0.010% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
