Single Point Load Cell

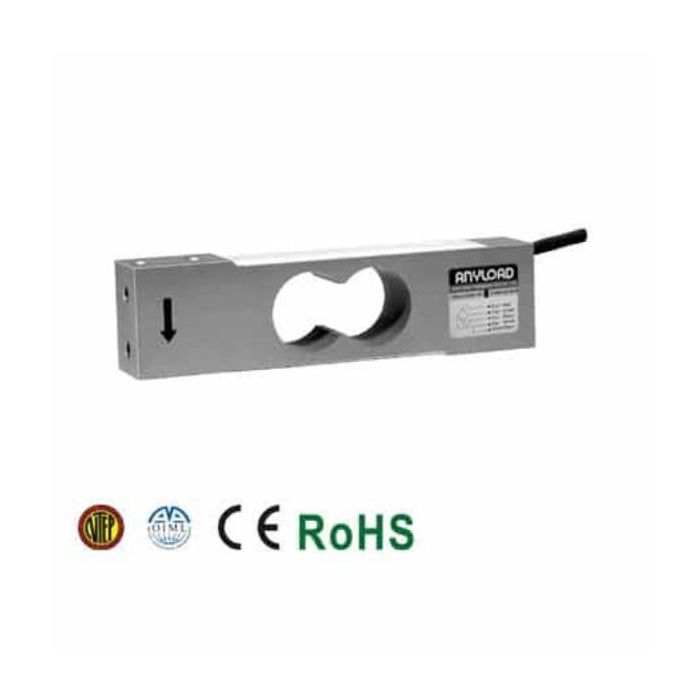

108TAUN Single Point Load Cell
In stock
SKU
108TAUN
This NTEP & OIML approved low capacity single point load cell provides an easy-to-install, cost-effective, and reliable compression weighing solution. The interchangeable design is popular across many applications, including for platform scales, counting scales, check weighers, etc.
Summary Feature
- Material: Aluminum, Clear Anodized
- Thread: Imperial
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Specification
| Rated Capacities | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg |
| Reference Max. Platform Size | 400mm x 450mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation (DC/AC) | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Manufacturer | Model |
| Artech | 60510 |
| Cardinal | TSP |
| Coti Global | CG-42 |
| HBM | SP4 |
| Rice Lake | RL1042 |
| Rice Lake | RLSP4 |
| Vishay Revere Transducers | 642 |
| Vishay Tedea-Huntleigh | 1042(imperial threads) |
