Single Point Load Cell
108BA Single Point Load Cell
In stock
SKU
108BA

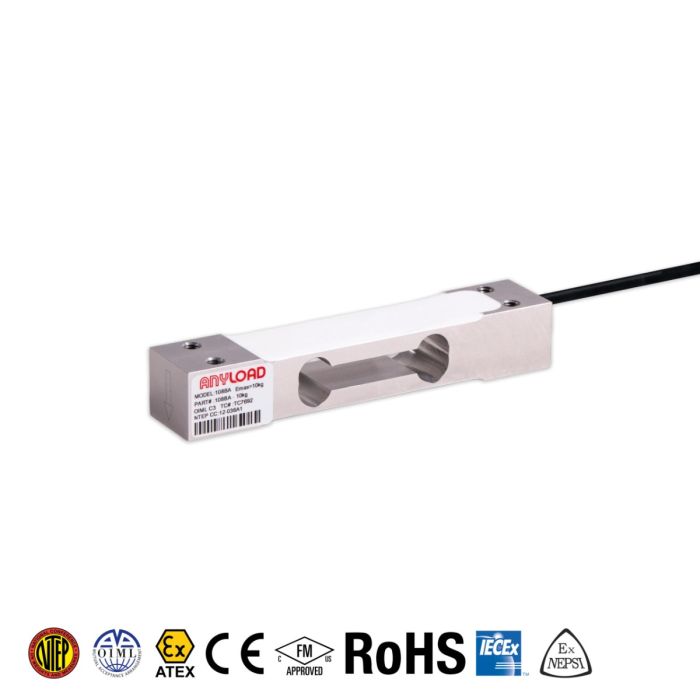

The ANYLOAD 108BA Aluminum Single Point Load Cell is an economical and versatile solution for lower-capacity applications, with capacities ranging from 3kg to 150kg. OIML and NTEP certified with IP66 water resistance, it offers superior safe overload tolerance and is easy to install.
Summary Feature
- Material: Aluminum, Clear Anodized
- Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Downloads
Downloads
Downloads
Specification
| Rated Capacities | 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ±0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Artech | 61022 |
| Manufacturer | Model |
| Mettler-Toledo | MT1022 |
| Flintec | PC22* |
| HBM | PW6C** |
| HBM | PW6K |
| Rice Lake | RL1521A |
| Vishay Celtron | LPS ME 6-35kg |
| Vishay Tedea-Huntleigh | 1022 |
