Single Point Load Cell

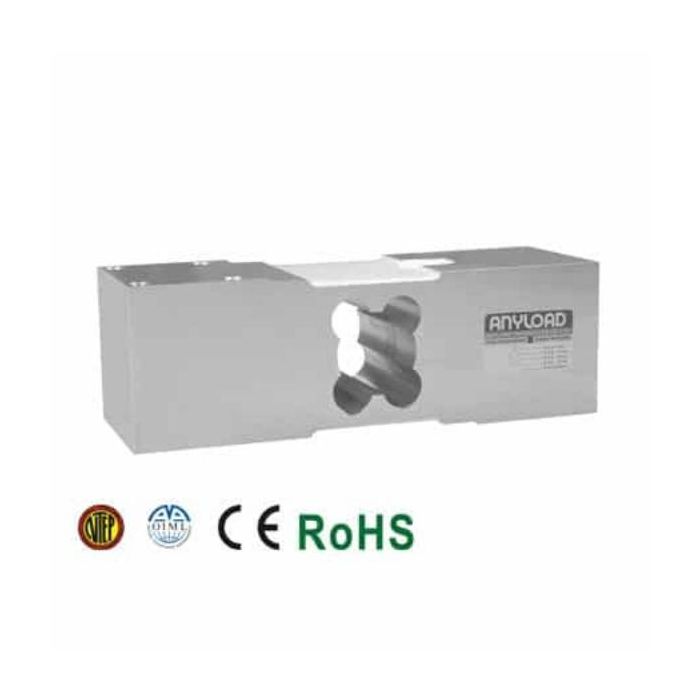

108MAUN Single Point Load Cell
In stock
SKU
108MAUN
The 108MAUN is an OIML C3 and NTEP approved lower capacity single point load cell is an easy-to-install and cost-effective weighing solution with good off-center loading compensation.
Summary Feature
- Material: Aluminum, Clear Anodized
- Thread: Imperial
- Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Specification
| Rated Capacities | 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg |
| Reference Max. Platform Size | 610mm x 700mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.017% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Manufacturer | Model |
| Coti Global | CG-50-1 |
| HBM | PW16 |
| Rice Lake | RL1260 |
| Vishay Tedea-Huntleigh | 1260 |
