* H of Flintec PC7 & Tedea 1510 are of 73mm
Single Point Load Cell

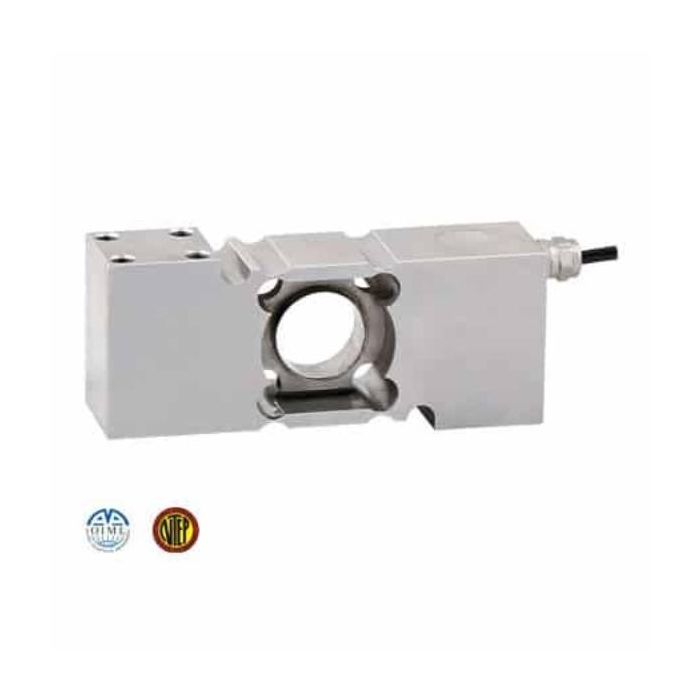

651KS22 Single Point Load Cell
In stock
SKU
651KS22
OIML certified C9 from 10kg-100kg, this single point load cell is the highest accuracy legal-for-trade load cell available in the world. With IP68 stainless steel construction, 14°F to 122°F temperature compensation, and 150% safe overload, the 651KS22 is the ultimate weighing solution suited to an immense variety of lower-capacity applications such as hopper scales and process weighing.
Summary Feature
- Material: Stainless steel
- Rated Capacities: 50kg, 100kg, 250kg, 500kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
Specification
| Rated Capacities | 50kg, 100kg, 250kg, 500kg |
| Reference Max. Platform Size | 600mm x 600mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Manufacturer | Model |
| Flintec | PC7* |
| Vishay Tedea-Huntleigh | 1510* |
| Mettler-Toledo | SSH |
