108JA-21 Single Point Load Cell
In stock
SKU
108JA-21

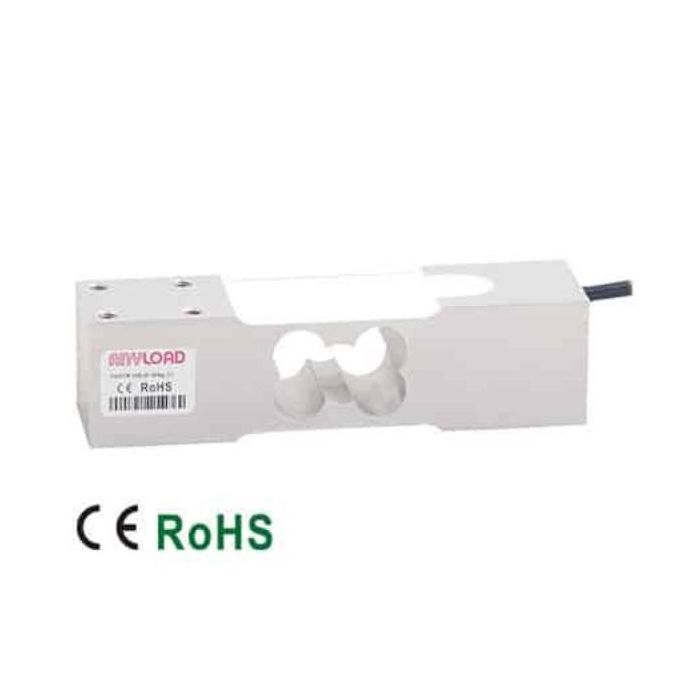

The ANYLOAD 108JA-21 Aluminum Single Point Load Cell is an NTEP and OIML-certified, IP66 water-resistant load cell designed for high accuracy and cost-effective compression weighing.
Summary Feature
- Material: Aluminum, Clear Anodized
- Rated Capacities: 50kg, 75kg, 100kg, 150kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
Specification
| Rated Capacities | 50kg, 75kg, 100kg, 150kg |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Manufacturer | Model |
| Vishay-Tedea Huntleigh | 1242 |
